Performance

Docking Interface

USB-C

Docking Cable Length

1 m USB-C Cable

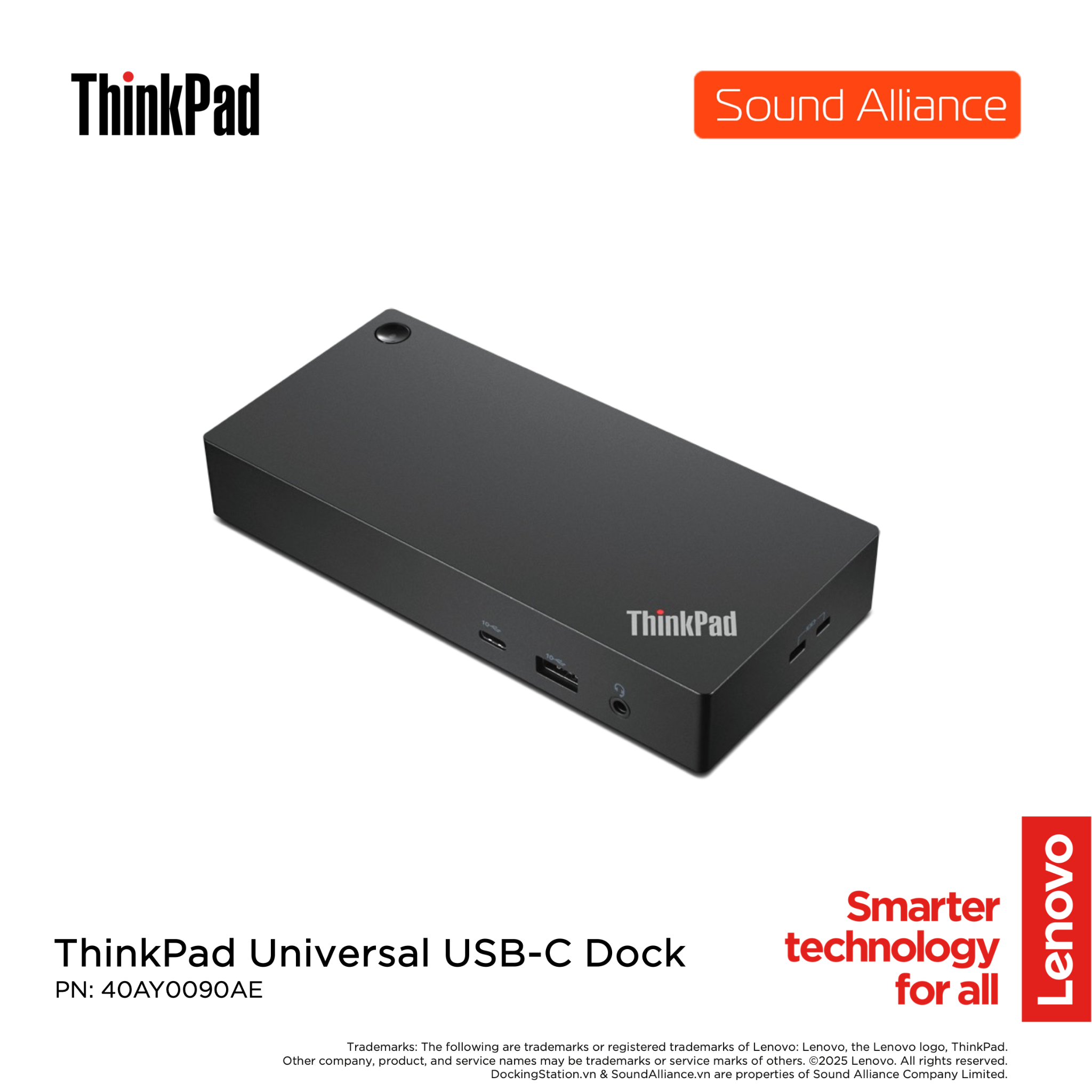

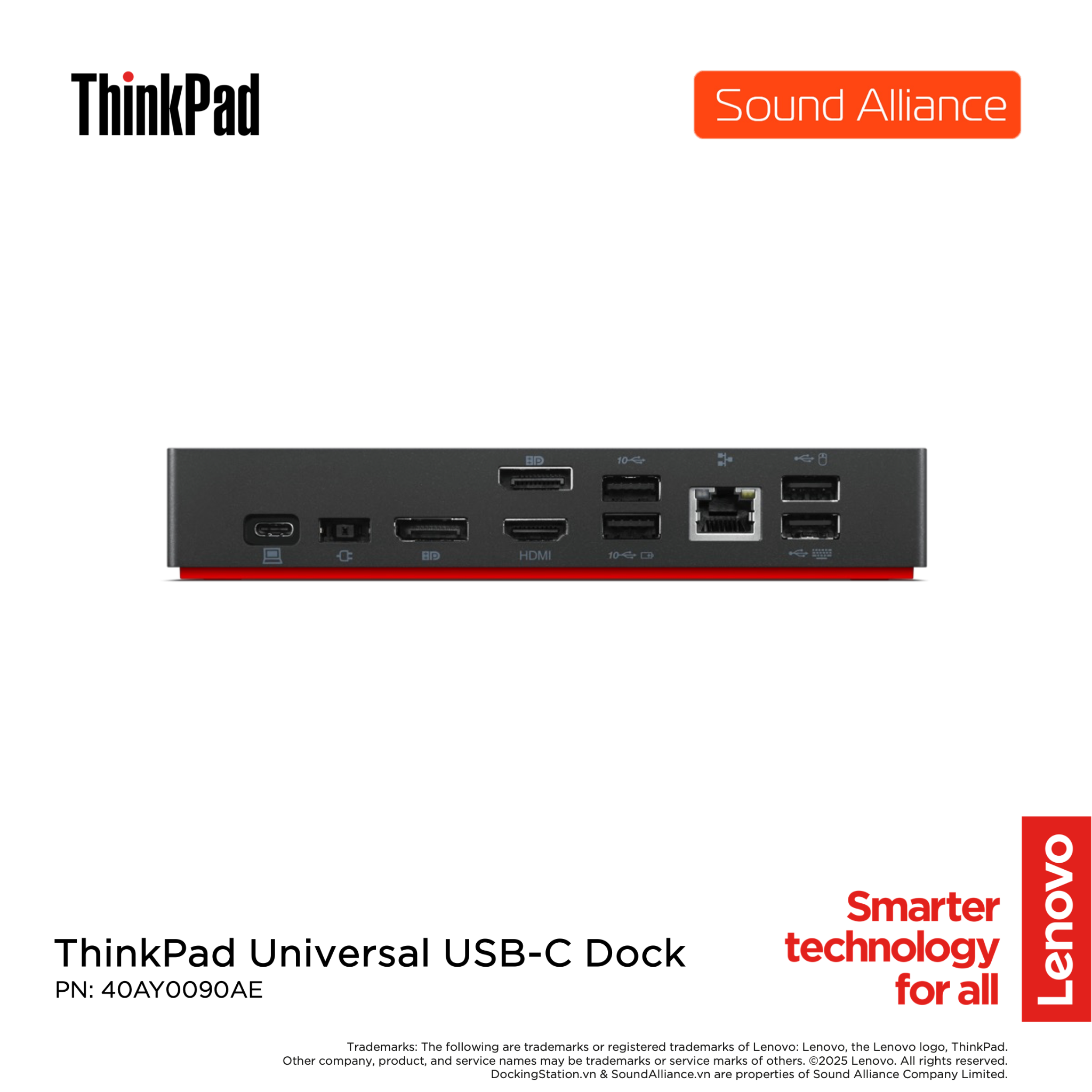

USB Ports

2 x USB-A 2.0

3 x USB-A 3.2 Gen 21 (10 Gbps, 1 with Always-On Charging)

1 x USB-C (10 Gbps, 5V/3A)

Video Ports

2 x DisplayPort 1.4

1 x HDMI 2.0

Resolution

Up to 3 x 4K @ 60 Hz²

Audio

1 x 3.5 mm Combo

System Charging

65W with 90W Power Adapter attached;

Max. 100W with 135W Power Adapter attached

Operating Humidity

Max. : 95%

Min. : 5%

Operating Temperature

Max. : 60 °C (140 °F)

Min. : -20 °C (-4 °F)

Design

Dimensions (W x D x H)

Product Dimension

(mm) : 171 x 80 x 30

(inches) : 6.73" x 3.15" x 1.18"

Package Dimension

(mm) : 210 x 158 x 75

(inches) : 8.27" x 6.22" x 2.95"

Weight

Product Weight

Starting at 325 g (0.72 Ibs)

Package Weight

Starting at 960 g (2.12 Ibs)

Color

Black

Security

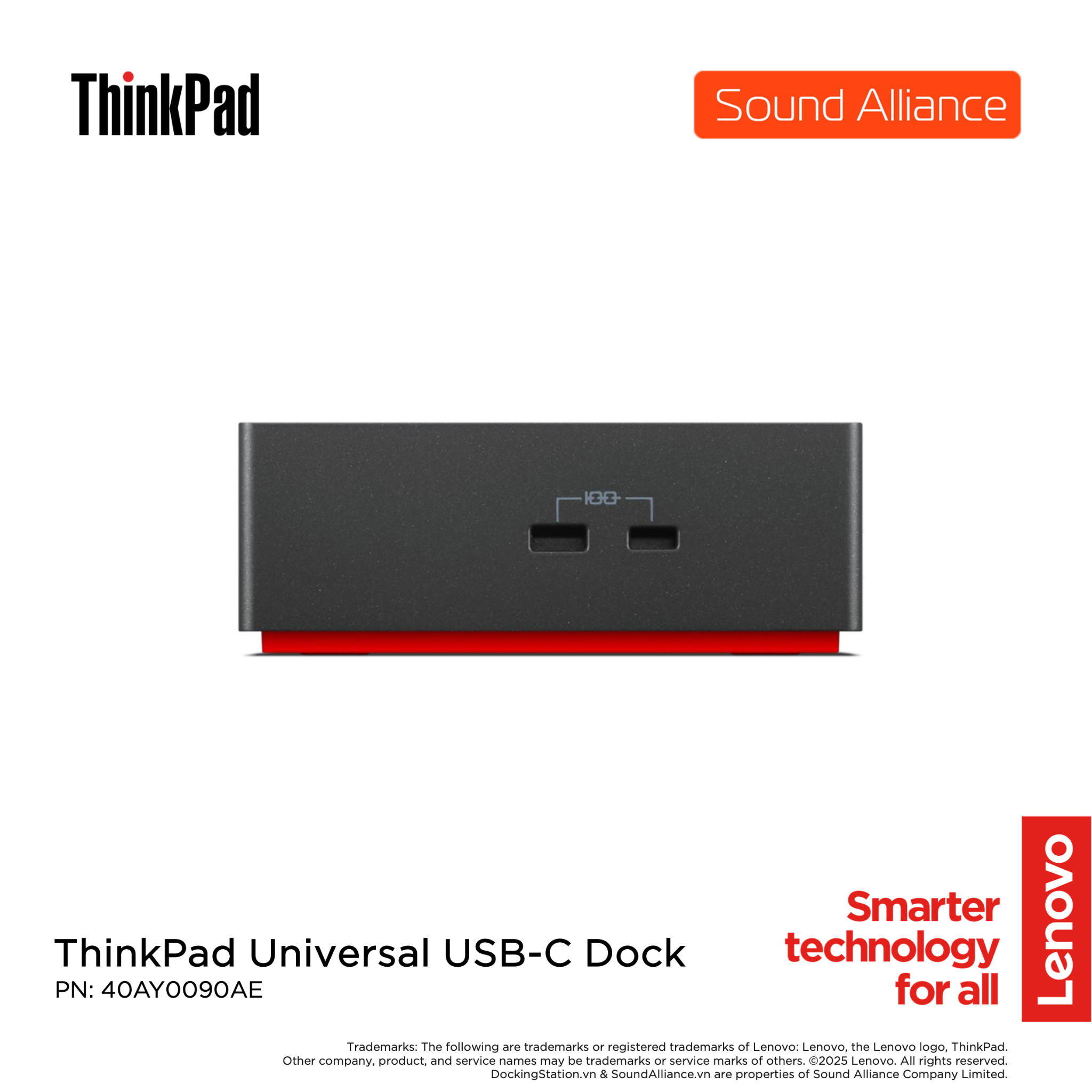

1 x Kensington Lock Slot

1 x NanoSaver Lock Slot

Connectivity

Networking

1 x Gigabit Ethernet Port

Information

Part Number (PN)

40AY0090AE (With 90W Adapter)

Supported OS

Windows 10 and above

Warranty

Period : 3 Years
Type : CRU

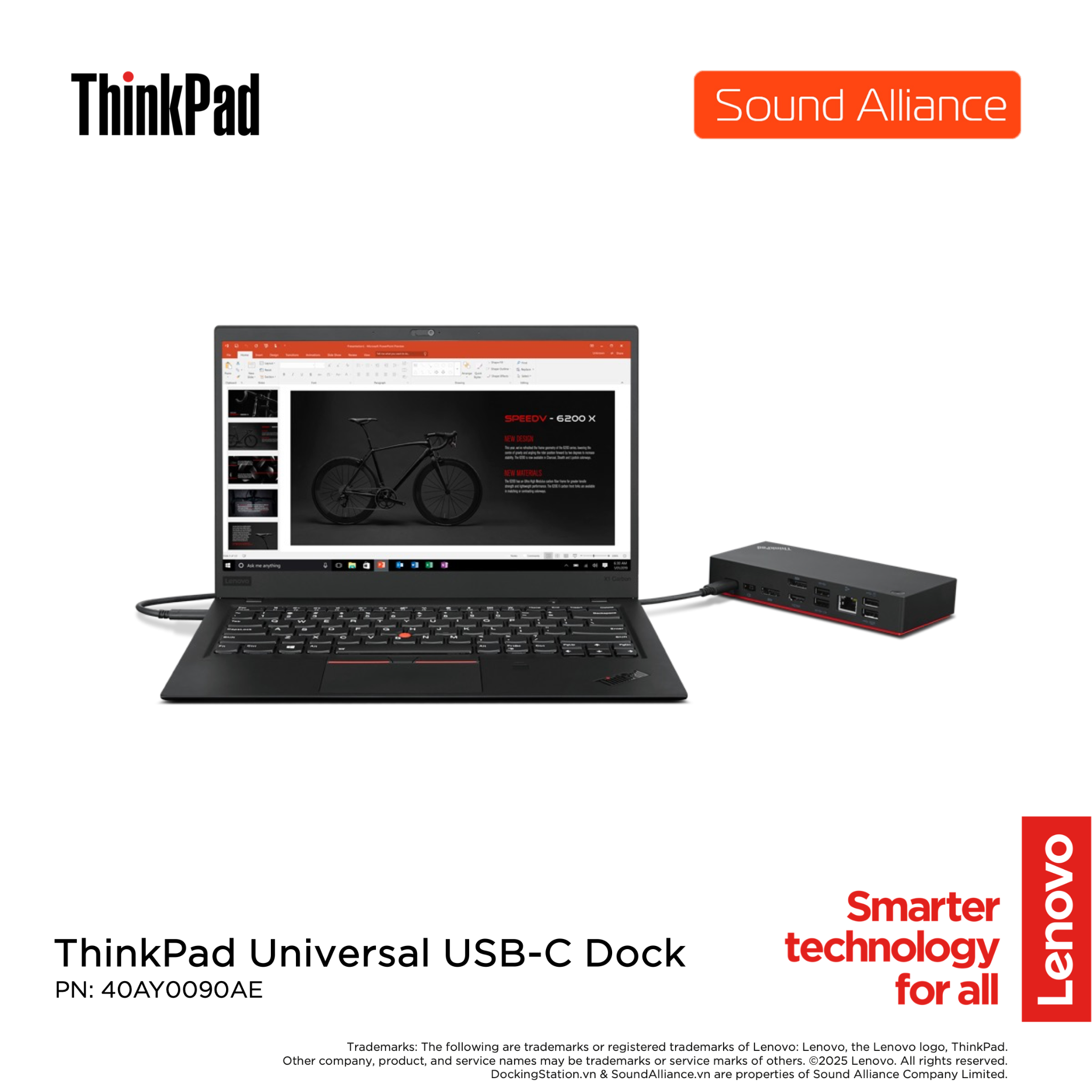

Supported Laptops

USB-C

USB4

Thunderbolt™ 3

Thunderbolt™ 4

Certifications

COC, CU EAC, cULus, FCC, ICES, KCC, NOM, RCM, RoHS, SABS LoA, Serbia Kvalitet, SII, TUV Mark, VCCI

Shipment Group (What’s in the Box)

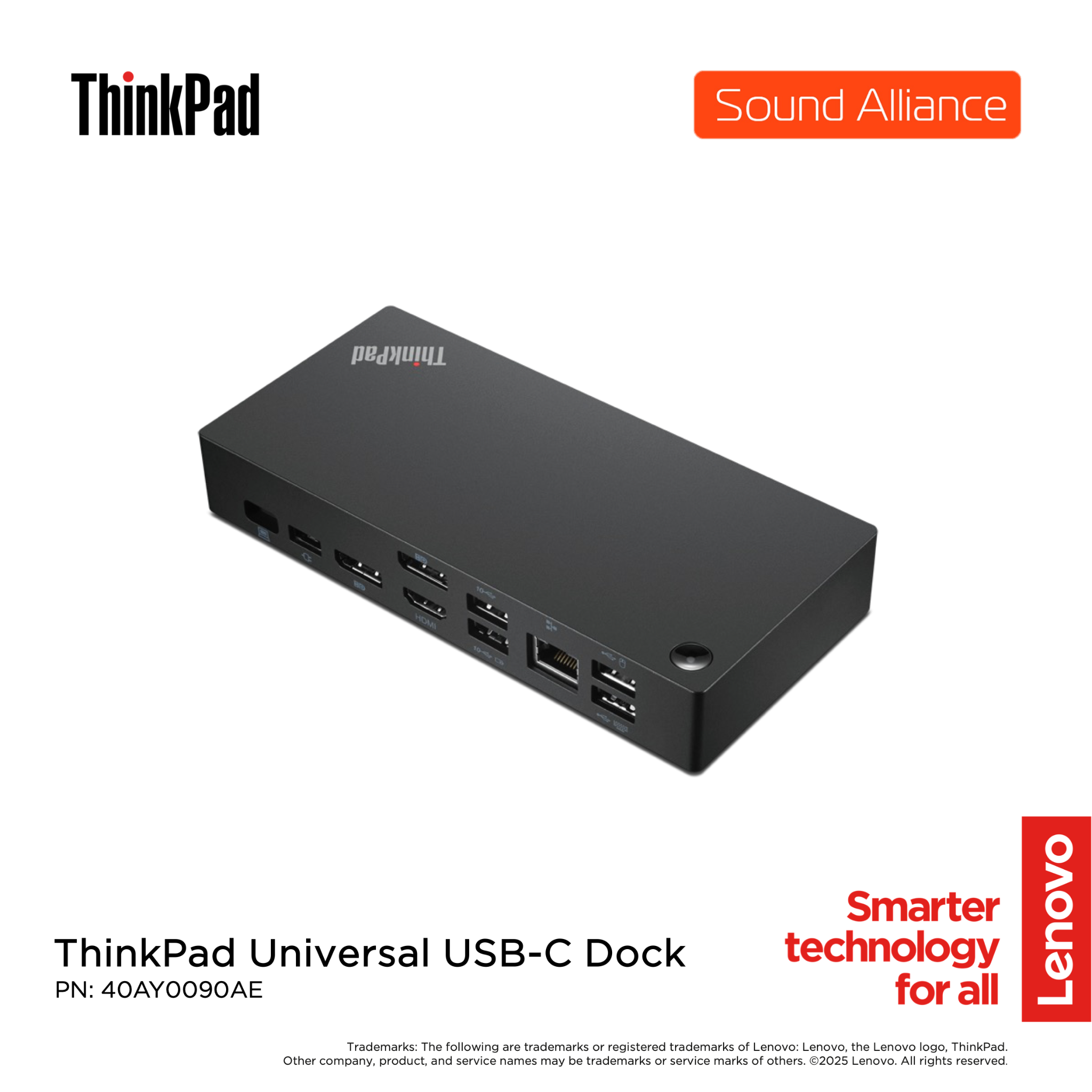

ThinkPad Universal USB-C Dock

90W Power Adapter

Power Cord

USB-C Cable

Document

Charge 65W to notebooks with inbox 90W power adapter attached, to support 100W charging, a 135W Slim Tip power adapter is needed, 135W

power adapter (Option PN: 4X20E50558(US) / 4X20E505xx) sold separately.

Depending on many factors such as the processing capability of peripheral devices, file attributes, and other factors related to system configuration and operating environments, the actual transfer rate using the various USB connectors

on this device will vary and is typically slower than the data rates as defined by the respective USB specifications: - 5 Gbit/s for USB 3.2 Gen 1; 10 Gbit/s for USB 3.2 Gen 2.

Dock has capability to support max. 3 x 4K display, the real resolution will depend on your PC and Monitor capability.

Lenovo USB-C & Thunderbolt™ Docks function with laptops that support industry standard USB-C Alt-Mode, DisplayLink or Thunderbolt™ protocols through their Type C™ port. Lenovo USB-C and Thunderbolt™ Docks support additional

features, such as MAC address passthrough, WOL and mirrored power button, on most Lenovo ThinkPad laptops, but such features may not be available on certain other Lenovo laptops or non-Lenovo branded laptop systems.
