FEATURE

TECHNICAL SPECIFICATION

MODEL NUMBER

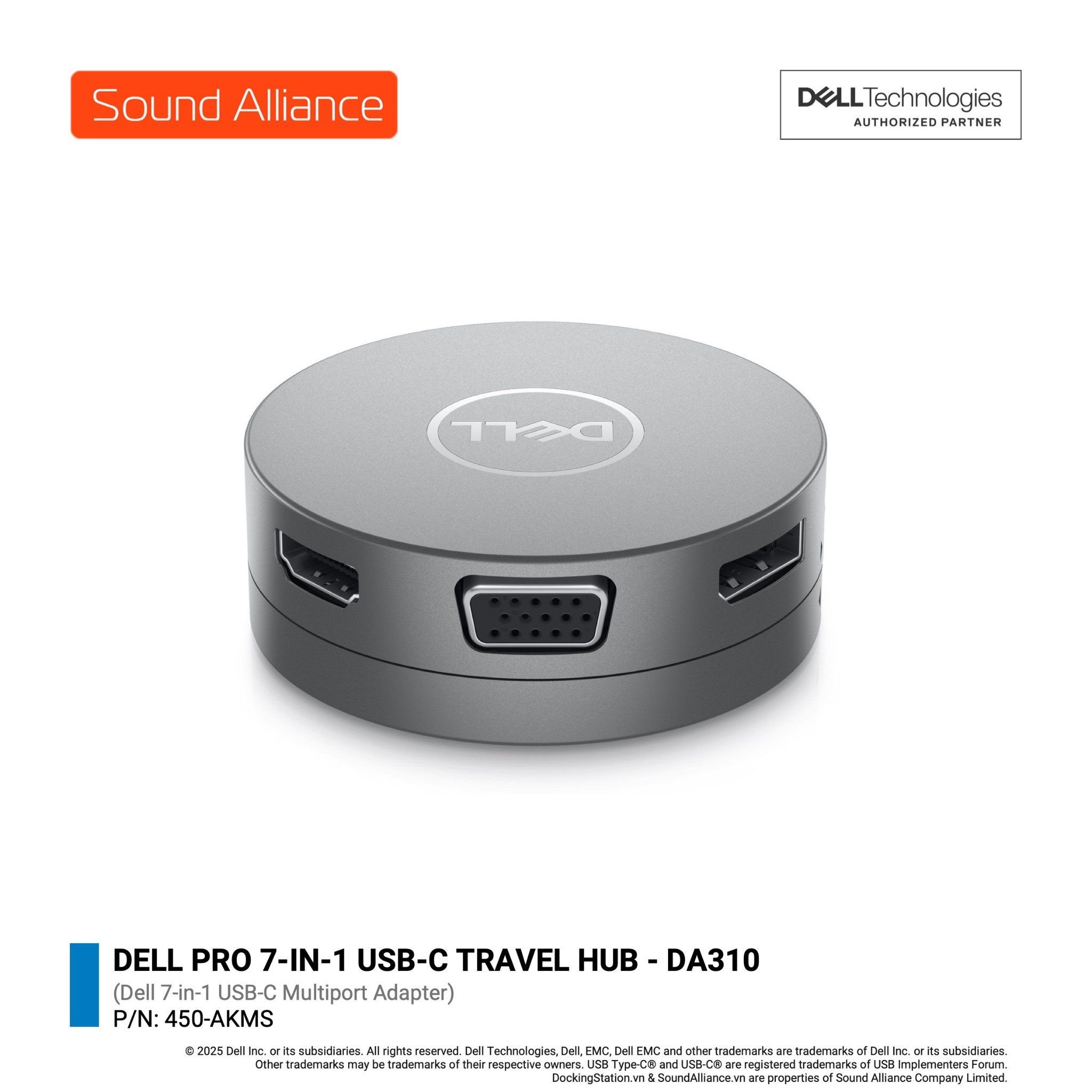

Dell Pro 7-in-1 USB-C Travel Hub – DA310

DIMENSIONS (DIAMETER X HEIGHT)

69.8 mm x 24.5 mm (2.75 inches x 0.96 inches)

WEIGHT

80g (2.28oz / 0.18 lbs)

HOST CONNECTION

USB-C

CABLE TYPE; LENGTH

Round coaxial; 120mm

USB-C CABLE (DATA /

POWER / VIDEO)

1 x USB-C multi functional cable that supports data transfer, power pass-through and display/audio

TOTAL PORTS

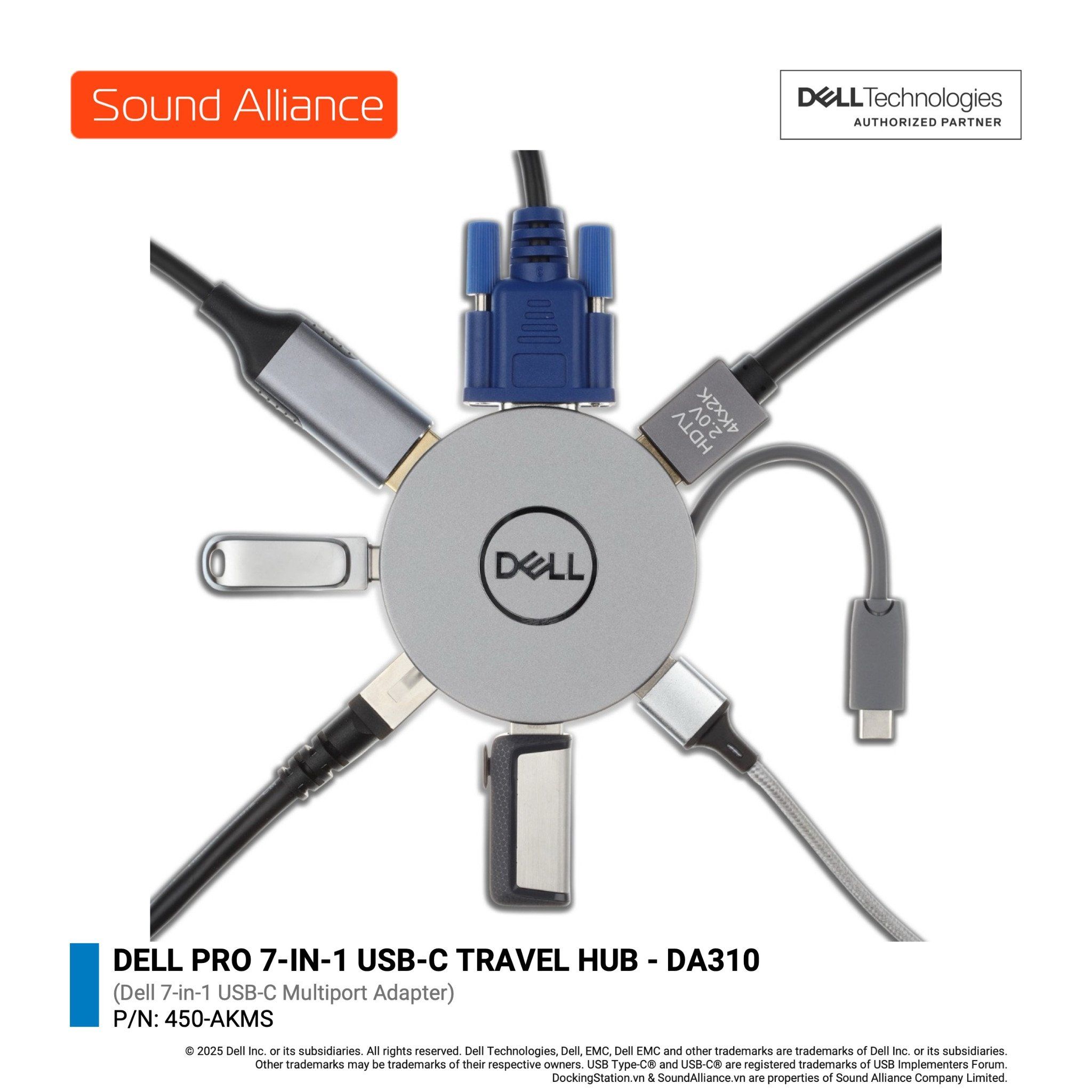

1 x USB-C, 2 x USB-A, 1 x HDMI, 1 x DisplayPort, 1 x VGA, 1 x RJ45

DATA PORTS1

2 x USB-A 3.1 Gen2

1 x USB-C 3.1 Gen2 that supports data transfer up to 10Gbps

POWER PASS-THROUGH PORT2

1 x USB-C that supports power pass-through up to 90W

VIDEO PORTS3

1 x USB-C : 4K (3840 x 2160) @ 30Hz (HDR Support)

1 x DisplayPort : 4K (3840 x 2160) @ 60Hz4 (HDR Support)

1 x HDMI 2.0 : 4K (3840 x 2160) @ 60Hz4 (HDR Support)

1 x VGA : FHD (1920 x 1080) @ 60 Hz max

NETWORKING

Gigabit Ethernet (RJ45)

FAST ROLE SWAP SUPPORTED8

Yes, Uninterrupted video & LAN connectivity even if power source is unplugged/plugged

PLUG & PLAY SUPPORT

Yes (No drivers installation)

SUPPORTED OPERATING SYSTEM

Windows 10 64 Bit, MAC, Ubuntu, Chrome, RHEL

DELL BUSINESS CLASS FEATURES

PXE Boot5

MAC address pass-through6

Wake-On LAN7

WHAT’S IN THE BOX

Dell Pro 7-in-1 USB-C Travel Hub – DA310

Documentation

WARRANTY

3 years

1 When adapter draws power from the laptop:

(a) and is connected to laptop’s USB-C/Thunderbolt port (3A/5V) – 2 downstream USB-A and 1 USB-C port support selected devices

(b) and is connected to laptop’s USB-C/Thunderbolt port (1.5A/5V) – 2 downstream USB-A ports and 1 USB-C can support low power consumption devices such as mouse, keyboard, Bluetooth / RF

dongle, selected thumb drives

Or, When adapter is connected to USB-C power adapter or USB-C display: and its USB-C cable is connected to laptop’s USB-C/Thunderbolt port – 2 downstream USB-A ports support selected devices

2 Up to 90W can be used to charge your USB-C laptop from an external power source connected to DA310. Actual power supplied is dependent on your power source/platform power policy. Power

adapter not included.

3 Only one video output is supported at a time.

4 Available with select PC models (that support DisplayPort 1.4, HBR3) and when connected to displays that offer 4K resolution at 60Hz, with static HDR support. Dynamic HDR like HDR10/HDR10+/

DolbyVision is excluded.

5 PXE Boot – Pre eXecution Environment Boot allows a computer to boot up from remote media when connected to the network with appropriate PXE server and OS image.

6 MAC address pass-through – MAC address pass through recognizes only a unique MAC address entered in the system’s BIOS by overriding the adapter MAC address every time your laptop is

connected to the network, ensuring that your PC’s MAC address stays the same no matter which USB-C adapter you use.

7 Wake-On LAN – Starts your PC remotely using the signal over your wired network.

8 With systems BIOS that support Fast Role Swap.

Technical specifications subject to change without prior notice. Product availability varies by country. Please contact your Dell representative for more information.

ID#G21000003
