OID

2101722213

Product Number

82Z85AA

Product Name

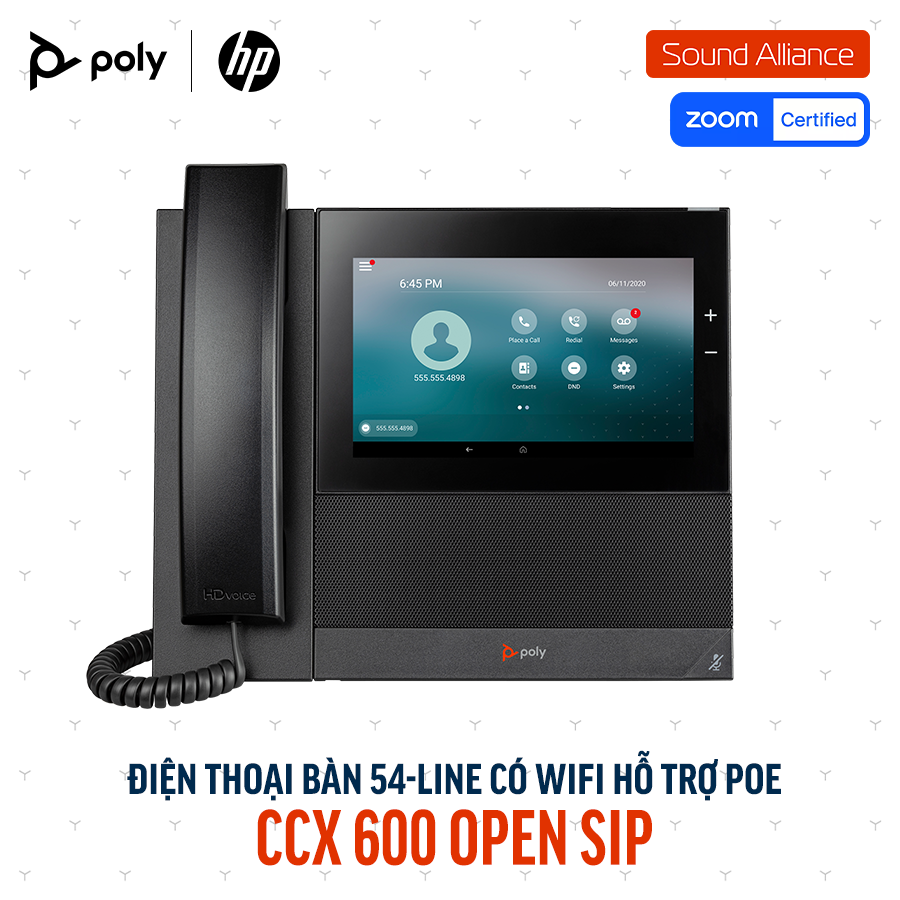

Poly CCX 600 Business Media Phone with Open SIP and PoE-enabled

Product Line

NI

Application (facet)

Zoom (native app); RingCentral; OpenSIP

Aspect Ratio

16:9

Audio Codecs

G.711 (A-law and μ-law); G.722; G.722.1; G.729AB; iLBC; OPUS

Audio Features

Poly HD Voice; Poly Acoustic Clarity technology provides full duplex conversations, acoustic echo cancellation, and background noise suppression; Poly Acoustic Fence technology eliminates background noise when using a handset or wired headset; Poly NoiseBlockAI technology removes most background noise when using the speakerphone; TIA-920 wideband audio, type 1 compliant (IEEE 1329 full duplex); Individual volume settings with visual feedback for each audio path; Voice activity detection; Comfort noise generation; DTMF tone generation (RFC 2833 and in-band); Low delay audio packet transmission; Adaptive jitter buffers

Brand (facet)

Poly

Cartons Per Layer

9

Cartons Per Pallet

54

Certifications and Compliances

Argentina ENACOM; AS/NZS 4268; AS/NZS 62368-1; Australia RCM; Brazil ANATEL; Canada ICES and NRTLC; Canada RSS 247 Issue2; China RoHS 2.0; CISPR32 Class B; EEA CE Mark; EN 301 489-1 and EN 301 489-3 and EN 301 489-17; EN 55024; EN 55032 Class B; EN 62368-1; ETSI EN 300 328 and ETSI EN 301 893; Eurasian Customs Union EAC; FCC Part 15 Class B; FCC Part 15.247 and FCC Part 15.407; IC ICES-003 Class B; IEC 60950-1 and IEC 62368-1; India WPC; Indonesia SDPPI; Israel MOC; Japan Article 2.1 Item 19-2 and 19-3; Japan MIC and VCCI; Malaysia SIRIM; Mexico IFETEL and NYCE; New Zealand Telepermit; Saudi Arabia CITC; Singapore IMDA; South Africa ICASA; South Korea KC; Taiwan NCC; UAE TRA; USA FCC and NRTL; UL 62368-1; VCCI Class B

Certified Collaboration Software

Zoom

Color

Black

Color (facet)

Black

Connectivity (facet)

USB port; Bluetooth; Wi-Fi; RJ-45; USB-C; Power over Ethernet (PoE)

Copyright Notice

© Copyright 2024 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Country of Origin

Made in China or Taiwan

Datasheet Photo 01

https://ssl-product-images.www8-hp.com/digmedialib/prodimg/lowres/c08661101.png

Datasheet Photo 03

https://ssl-product-images.www8-hp.com/digmedialib/prodimg/lowres/c08661131.png

Display Features

On-screen virtual keyboard; Adjustable font size selection (regular, medium, large); Screensaver; Voicemail support; Normal and dark mode; Digital picture frame

Display Size (diagonal)

7"

Display Size (diagonal, metric)

17.8 cm (7")

ECCN

5A992

External I/O Ports

1 USB 2.0 Type-A (for media and storage applications); 1 USB 2.0 Type-C® (for media and storage applications); 2 RJ-45 (10/100/1000BASE-TX Mbps)

Features (facet)

Noise cancellation (NC); Bluetooth headset support; USB headset support

HTS Code

8517180020

Headset Ports

1 RJ-9; 1 Electronic Hook Switch (EHS) port for optional adapter

Headset and Handset Compatibility

Bluetooth® headset compatibility; Compatible with commercially available TTY adapter equipment; Compliant with ADA Section 508 Subpart B 1194.23 (all); Hearing aid compatibility to ITU-TP.370 and TIA 504A standards; Hearing aid compatible (HAC) handset for magnetic coupling to hearing aids; USB Type-A headset support; USB Type-C® headset support

Management Software

Poly Lens; Poly Zero Touch Provisioning; Polycom Device Management Service for Service Providers (PDMS-SP) Cloud Management; Web UI to device IP address

Manufacturer Warranty

Poly standard one-year limited warranty

Multiple Order Quantity

5

Native Resolution

1024 x 600

Operating Humidity Range

5 to 95%

Operating Temperature Range (celsius)

0 to 40°C

Operating Temperature Range (fahrenheit)

32 to 104°F

Package Dimensions (imperial)

7.48 x 8.26 x 2.16 in

Package Dimensions (metric)

26.3 x 21.7 x 6 cm

Package Weight (imperial)

0.66 lb

Package Weight (metric)

300 g

Pallet (Layers)

6

Pallet Dimensions (imperial)

40 x 48 x 58.66 in

Pallet Dimensions (metric)

101.6 x 121.9 x 149 cm

Pallet Weight (imperial)

787.05 lb

Pallet Weight (metric)

357 kg

Panel Technology

Color LCD

Phone Type (facet)

Touchscreen

Power Features

Built-in auto sensing IEEE 802.3at Power over Ethernet (Class 4); 25 W (maximum)

Power Features Footnote Number

[2,3]

Product Type (facet)

Desk Phones

Products Per Pallet

270

Products per Pallet Layer

45

Security Management

802.1X Authentication and EAPOL Media encryption via SRTP; Digest authentication; HTTPS secure provisioning; Password login; Support for signed software executables; Support for URL syntax with password; Wi-Fi encryption: WEP, WPA-Personal, WPA2-Personal, WPA2-Enterprise with 802.1X (EAP-TLS, PEAP-MSCHAPv2)

Segment (facet)

Business

Series Name (facet)

CCX IP 600

Special Features

Adjustable base height; Unicode UTF-8 character support

Storage Temperature Range (celsius)

-40 to 70°C

Storage Temperature Range (fahrenheit)

-40 to 158 °F

Sub Brand (facet)

CCX

Supported Network Protocols

FTP/TFTP/HTTP/HTTPS server-based central provisioning; Hardware diagnostics; Manual or dynamic host configuration protocol (DHCP) network setup; Network address translation support for static configuration and Keep-Alive; QoS Support — IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS, and DHCP; Status and statistics reporting; Syslog Event Logging; Conforms to IEEE802.3-2005 (Clause 40) for physical media attachment; Conforms to IEEE802.3-2002 (Clause 28) for link partner auto-negotiation; Time and date synchronization using SNTP; SIP signaling; RTCP and RTP support; IPv4; IPv6; Provisioning and call server redundancy support; DNS-SRV

Tech Spec Footnote 01

[1] Most software-enabled features must be supported by the service provider platform. Please contact your IP PBX/softswitch vendor or service provider for a list of supported features.

Tech Spec Footnote 02

[2] External universal AC/DC adapter, 48 VDC, 0.52 A, 25 W (sold separately).

Tech Spec Footnote 03

[3] Ordering an optional power supply unit will be necessary if not Powered over Ethernet with PoE (i. e. using Wi-Fi for network).

Telephony and Call Handling Features

Busy Lamp Field (BLF); Call timer and call waiting; Caller ID enable/disable; Distinctive incoming call treatment/call waiting; Do not disturb function; One-touch speed dial, redial; Shared call/bridged line appearance; Automatic off-hook call placement (hot dialing); Call media recording/playback; Automatic/remote answer on headset using electronic hook-switch; Call hold/resume, diversion (forward), transfer (consultation, blind), pickup; Calling, called, connected party identification; Call forward for shared lines; Private hold for shared lines; Call logs (missed, received, placed); Local contact directory; Create local contact from call log; Corporate directory; Call server redundancy (failover); SBC line registration; Conference bridging; Local call forwarding (all, busy, no answer) with destination shown on idle display; Automatic call distribution (ACD); Automatic answer (intercom); Call park/retrieve; Directed call pickup; Group call pickup; Hunt group - sequential calling; Last call return; Auto-answer a page with a muted microphone; PTT and Multicast group; Exchange Calendar Integration; Flexible line keys; Key system emulation; STIR/SHAKEN Caller ID validation; Voice Quality Monitoring (VQMon)

Telephony and Call Handling Features Footnote Number

[1]

Touch-enabled

Gesture-based, multi-touch capable touchscreen

UNSPSC Code

43191508

Usage (facet)

Business

User Type (facet)

Everyday

VoIP Features

24 lines (SIP registrations); IETF SIP (RFC 3261 and companion RFCs)

What Is In The Box

Console; Desk stand; Handset with handset cord; Network (LAN) cable-CAT-5E; Setup sheet

Wireless Technology

Bluetooth® 4.2; Wi-Fi network connectivity: 2.4-2.4835 GHz (802.11b, 802.11g, 802.11n HT-20); 5.15-5.825 GHz (802.11a, 802.11n, HT-20, 802.11n HT-40)
