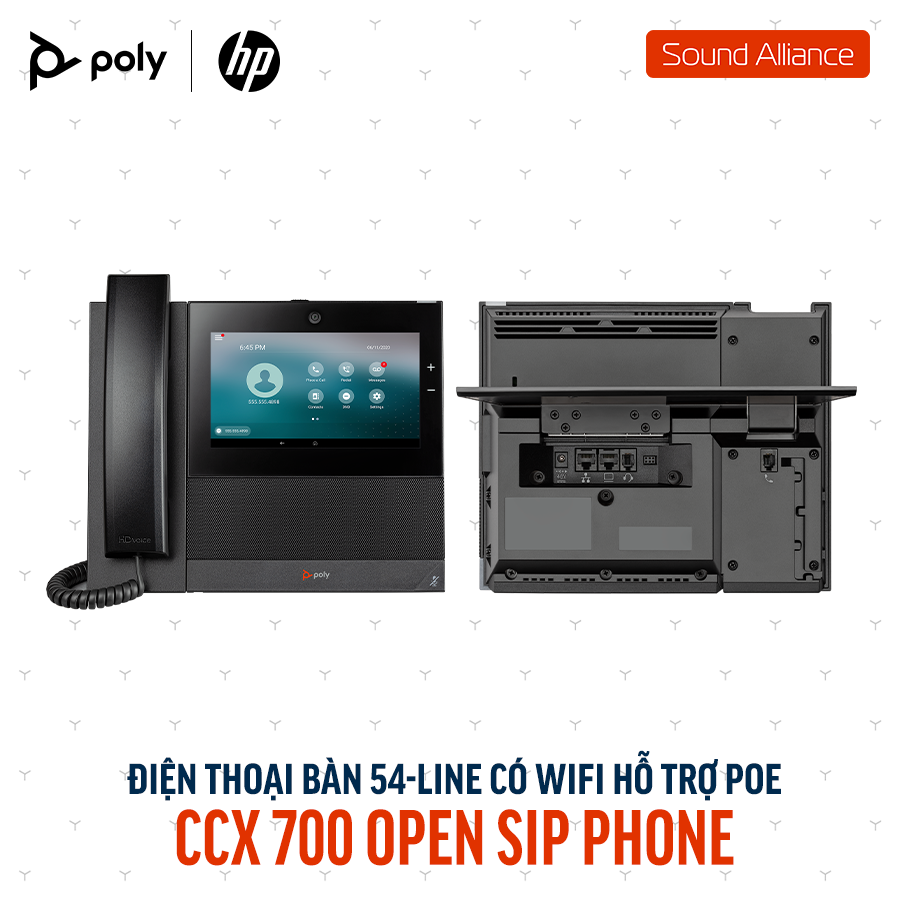

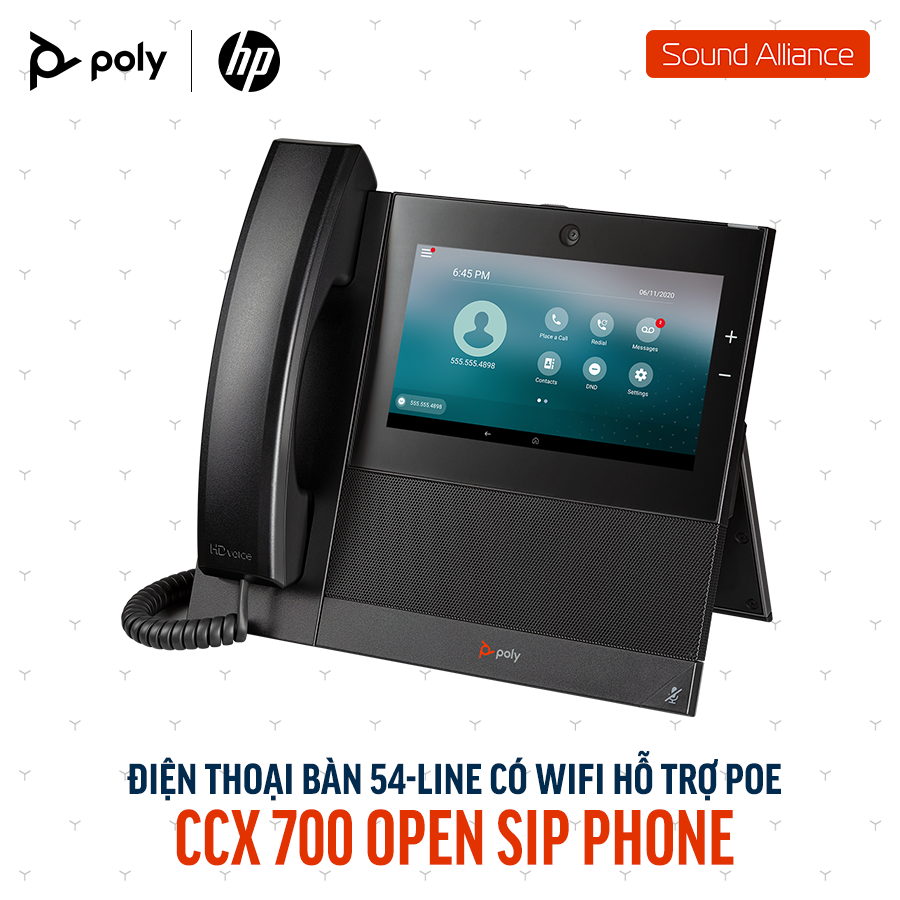

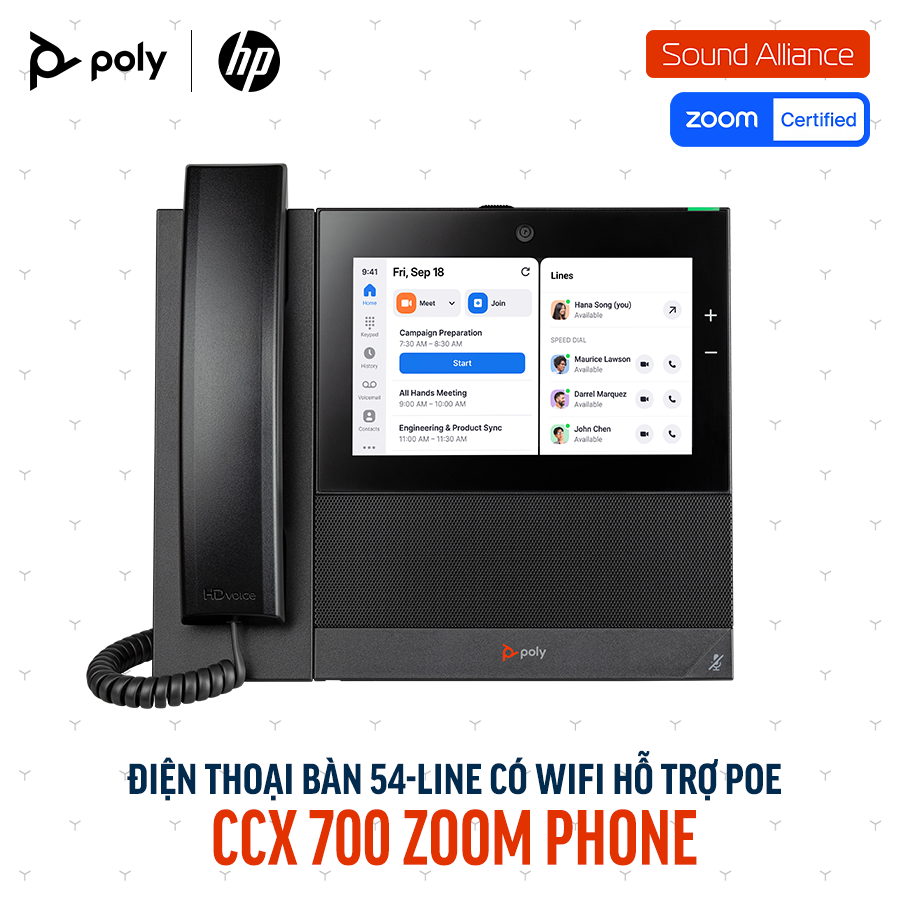

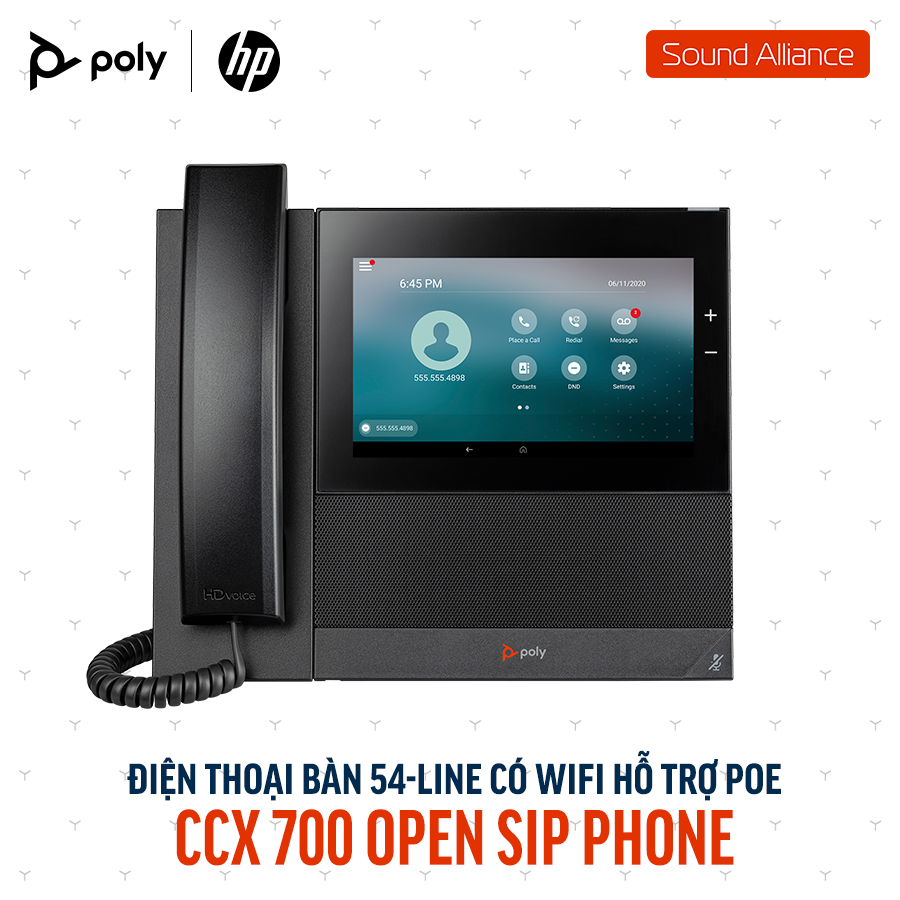

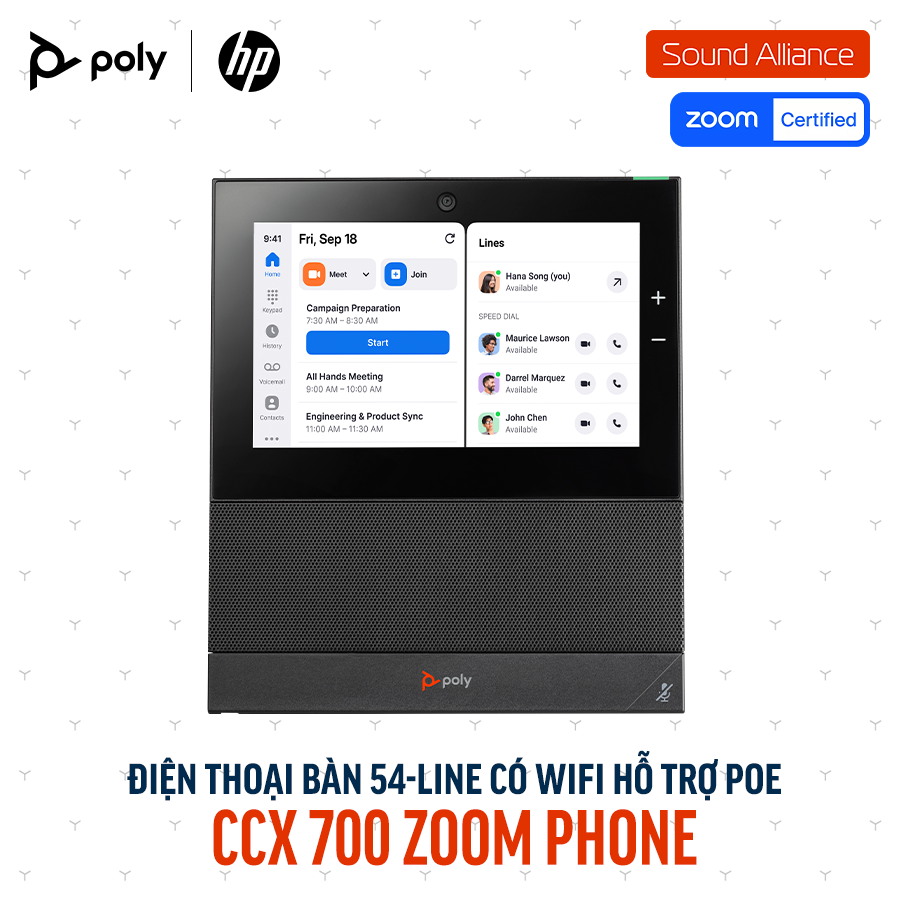

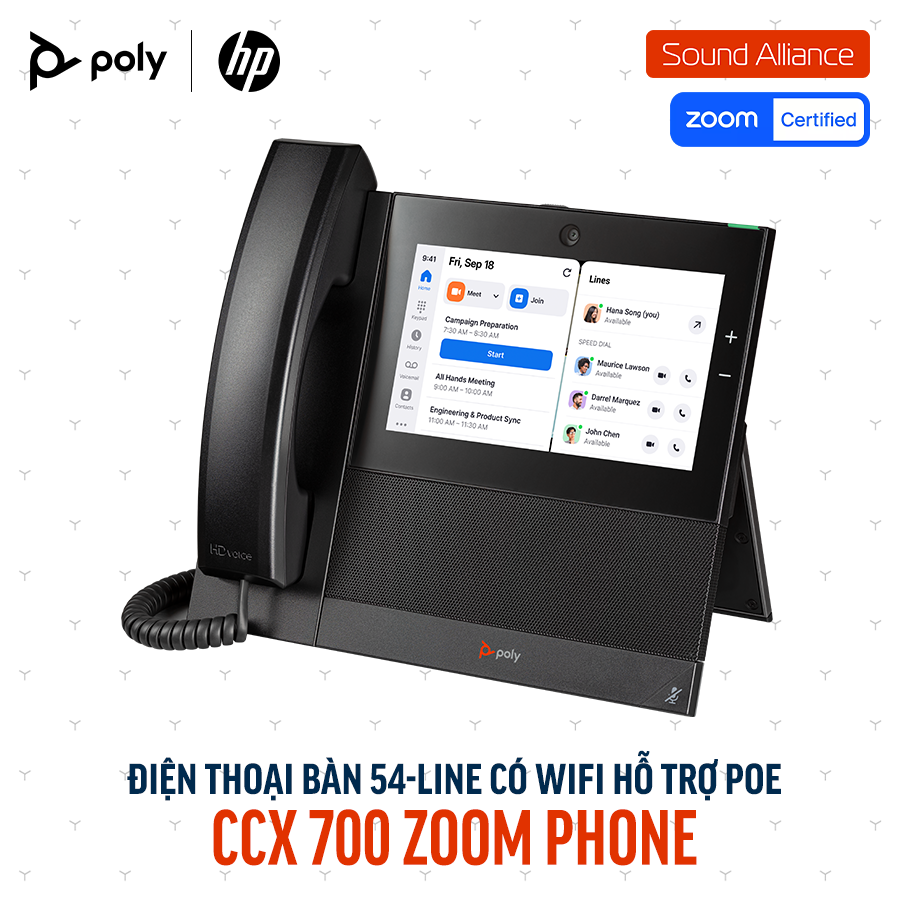

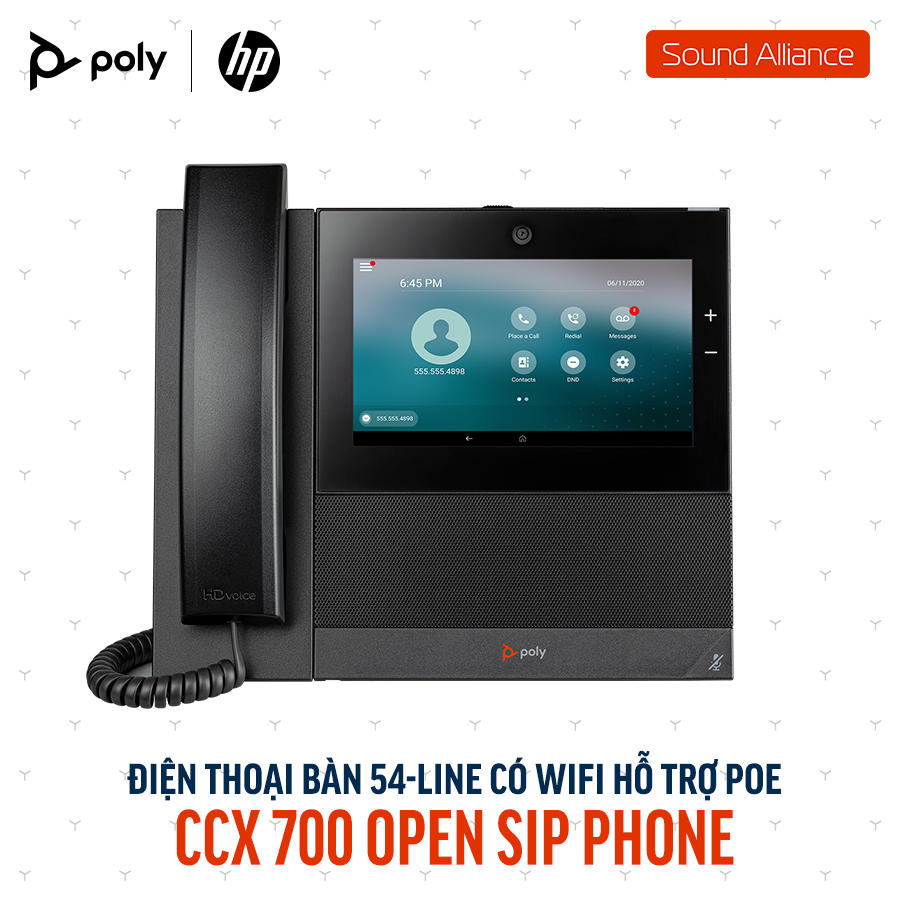

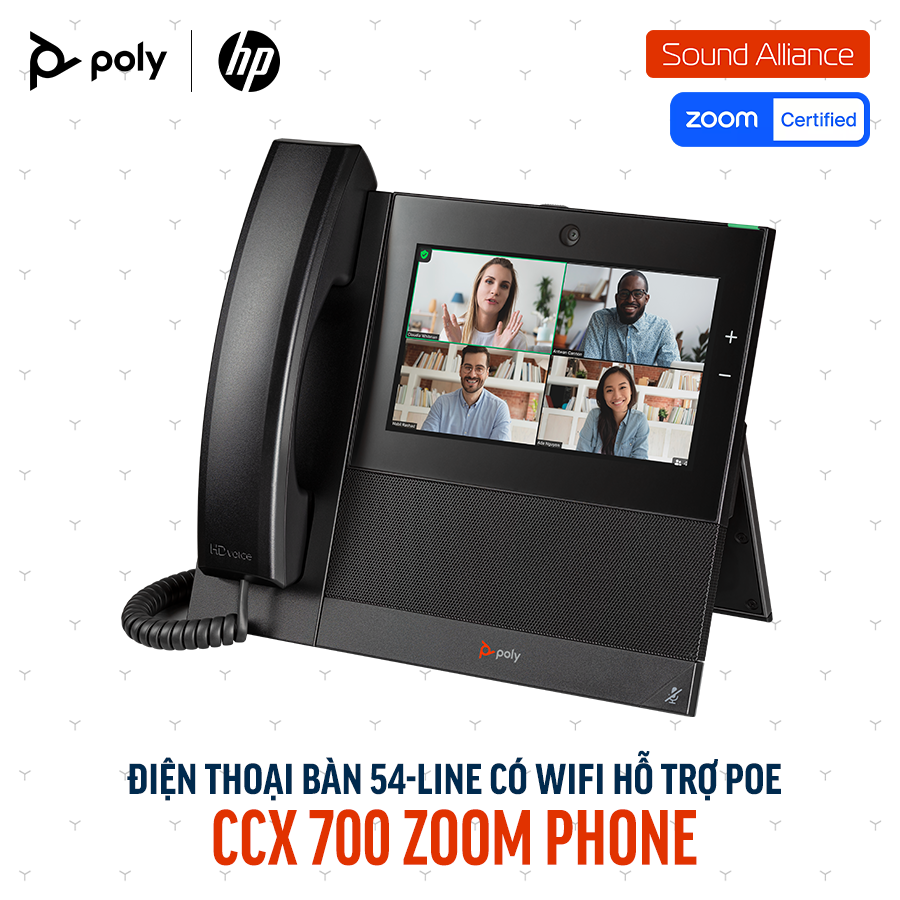

POLY CCX 700

SPECIFICATIONS

CAMERA FEATURES

• Gesture-based, multitouch-capable touchscreen
• 7” color LCD (1024 x 600 pixel)
• 16:9 aspect ratio Screensaver
• On-screen virtual keyboard
• Voicemail support
• Adjustable base height
• One USB type-A port (2.0 compliant) for media and storage applications
• One USB Type-C port (2.0 compliant) for media and storage applications
• Integrated Bluetooth 4.2
• Integrated Wi-Fi
• Unicode UTF-8 character support
• Adjustable font size selection (regular, medium, large)
• Microsoft Exchange calendaring
• Multilingual user interface1 including Chinese, Danish, Dutch, English (Canada/ US/UK), French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, and Swedish

AUDIO FEATURES

• Poly HD Voice technology delivers lifelike voice quality for each audio path: handset, hands-free speakerphone, and optional headset
• Poly Acoustic Clarity technology providing full duplex conversations, acoustic echo cancellation, and background noise suppression
• Poly Acoustic Fence eliminates background noise when using a handset or wired headset
• Poly NoiseBlock AI removes most background noise when using the speakerphone even while you are talking
• TIA-920 wideband audio, type 1 compliant (IEEE 1329 full duplex)
• Frequency response—100 Hz–20 kHz for handset, optional headset, and handsfree speakerphone modes
• Codecs: G.711 (A-law and μ-law), G.729AB, G.722 (HD Voice), G.722.1 iLBC
• Individual volume settings with visual feedback for each audio path
• Voice activity detection
• Comfort noise generation
• DTMF tone generation (RFC 2833 and in- band)
• Low-delay audio packet transmission Adaptive jitter buffers
• Packet loss concealment
• OPUS support

CAMERA FEATURES

• 1080p at 30 fps frame rate
• 4 mega pixel camera with privacy shutter
• Automatic exposure and white balance
• Autofocus, 8cm-infinity
• 4x electronic zoom (1.4x lossless)

VIDEO STANDARDS AND PROTOCOLS

• 264 AVC, H.264 high profile encoding
• RGB and YUV raw video

HEADSET AND HANDSET COMPATIBILITY

• Dedicated RJ-9 headset port
• Hearing aid compatibility to ITU-T P.370 and TIA 504A standards
• Compliant with ADA Section 508 Subpart B 1194.23 (all)
• Hearing aid compatible (HAC) handset for magnetic coupling to hearing aids
• Compatible with commercially-available TTY adapter equipment
• USB headset support
  Bluetooth headset support

NETWORK AND PROVISIONING

• SIP protocol support
• SDP
• IETF SIP (RFC 3261 and companion RFCs)
• Two-port gigabit Ethernet switch 10/100/1000 Base-TX across LAN and PC ports
• Wi-Fi network connectivity–2.4-2.4835 GHz (802.11b, 802.11g, 802.11n HT- 20)5.15-5.825 GHz (802.11a, 802.11n, HT- 20, 802.11n HT-40)
• Conforms to IEEE802.3-2005 (Clause 40) for physical media attachment
• Conforms to IEEE802.3-2002 (Clause 28) for link partner auto-negotiation
• Manual or dynamic host configuration protocol (DHCP) network setup
• Time and date synchronization using SNTP
• FTP/TFTP/HTTP/HTTPS server- based central provisioning for mass deployments
• Provisioning and call server redundancy supported1
• QoS Support—IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS, and DHCP
• VLAN—CDP, DHCP VLAN discovery, LLDPMED for VLAN discovery - Network address translation support for static configuration and “keep-alive”
• SIP signaling
  RTCP and RTP support
• Event logging
• Syslog
• Hardware diagnostics
• Status and statistics reporting IPv4
• TCP
• UDP
• DNS-SRV

SECURITY

• 1X authentication and EAPOL
• Media encryption via SRTP
• Encrypted configuration files
• Digest authentication
• Password login
• Support for URL syntax with password for boot server address
• HTTPS secure provisioning
• Support for signed software executables
• Wi-Fi encryption: WEP, WPA-Personal, WPA2-Personal, WPA2-Enterprise with 802.1X (EAP-TLS, PEAP-MSCHAPv2)

POWER

• Built-in auto sensing IEEE 802.3at Power over Ethernet (Class 4) 25 W (Max)
• External universal AC/DC adapter (optional), 48 VDC @ 0.52A (25 W)

REGULATORY APPROVALS

• Argentina ENACOM
• Australia RCM
• Brazil ANATEL
• Canada ICES and NRTLC China CCC and SRRC
• China RoHS 2.0
• EEA CE Mark
• Eurasian Customs Union EAC India WPC
• Indonesia SDPPI
• Israel MOC
• Japan MIC & VCCI
• Malaysia SIRIM
• Mexico IFETEL and NYCE NZ Telepermit
  Saudi Arabia CITC
  Singapore IMDA
• South Africa ICASA South Korea KC
  Taiwan NCC •UAETRA
• USA FCC and NRTL

RADIO

• USA–FCC Part 15.247 & FCC Part 15.407
• Canada–RSS 247 Issue2
  EU–ETSI EN 300 328 & ETSI EN 301 893 Japan–Article 2.1 Item 19-2 and 19-3
  Australia–AS/NZ4268

SAFETY

• UL 62368-1
• CAN/CSA C22.2 No. 62368-1-14
• EN 62368-1
• IEC 60950-1 and IEC 62368-1
• AS/NZS 62368-1

EMC

• FCC Part 15 Class B ICES-003 Class B
  EN 55032 Class B
  EN 55024
• EN 301 489-1 and EN 301 489-3 and EN 301 489-17
• CISPR32 Class B VCCI Class B

OPERATING CONDITIONS

• Temperature: 0 to 40 °C (+32 to 104 °F)
• Relative humidity: 5% to 95%, noncondensing

STORAGE TEMPERATURE

• -40 to +70 °C (-40 to +160 °F)

POLY CCX 700 BUSINESS MEDIA PHONE COMES WITH

• Console
• Handset with handset cord (handset model only)
• Network (LAN) cable—CAT-5E
• Desk stand
• Setup sheet

UNIT SIZE

• With handset: 26.3 cm x 21.7 cm x 6.0 cm WxHxD (10.4 in x 8.5 in x 2.4 in WxHxD)
• Without handset: 19.0 cm x 21.7 cm x 6.0 cm WxHxD (7.5 in x 8.5 in x 2.4 in WxHxD)

STANDARD PART NUMBER

UNIT PACKAGE WEIGHT

• 2200-49750-025 (with handset): 2.05 kg (4.45 lbs)
• 2200-49740-025 (without handset): 1.32 kg (2.91 lbs)

MASTER CARTON QUANTITY

• Five (5) - CCX 700 with handset
• Ten (10) - CCX 700 without handset

LIMITED WARRANTY

• One (1) year
